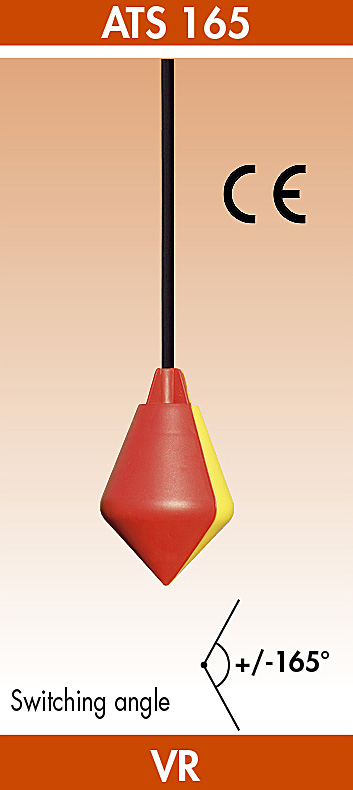

Level switch for very agitated liquids ATS 165

Description

This float level switch (NO or NC) allows the automation of small pumps either live (up to 1.5 HP) or unlimited through a relay.

With its 165º wide differential angle, the ATS 165 level switch provides smooth level contact on pump motors and electrical devices.

Also, it can detect both the high and low level in the same tank whose hysteresis does not exceed 1.5 m.

This model is also available in an ACS certified version for use in drinking water for human consumption. See the ATS 165 EP level switch.

ATMI
 Technical data sheet - ATS 165  (PDF 594Ko)

Advantages

ECONOMIC

ECOLOGIC

RELIABLE

WATERPROOF

ROBUST

CUSTOMIZABLE

Application

Technical caracteristics :

Switching angle +/- 165°
Allowed fluid density 0,70 to 1,10
Power supply 250 - 400 VAC /VDC 50/60 Hz
Cut out power 20 (8) A (20 A resistive; 8 A inductive)
Maximum pressure 3,5 bars
Allowed temperature 85 °C
Protection index IP 68
Housing material Copolymer Polypropylene
Cable 3 x 1 mmm² Neoprene, HR HY
Weight 325 g
Dimenssion Height : 152 mm - Diam : 95 mm
Ballast 350 g résine chargée
Cable lenght 5, 6, 10,13, 15, 20, 25 et 30
+ de détails

Recommended accessories

FIXCAB

Fixing accessory strongly recommended for all suspended floats

  • Avoid the risk of deterioration of the cable
  • Easy installation
  • Precise cable adjustment at all times
FIXCAB
ATMI
 Technical data sheet - FIXCAB  (PDF 335Ko)

AJUSTABLE BALLASTS

Adjustable ballast are essential for good operation of the floats level switches.

  • Set the rotation point of the float.
  • Allow the float to work in a wide range of densities
  • Precise adjustment at any time to adapt to any turbulence in the liquid
ADJUSTABLE BALLASTS





ATMI
